The Smart-Jet Printer is the Most Compact and Most Reliable Thermal Ink Jet Printer on the Market


Large Character Coding

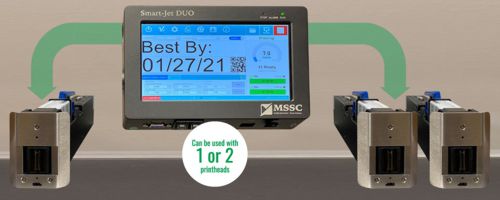

Smart Jet® Duo Max

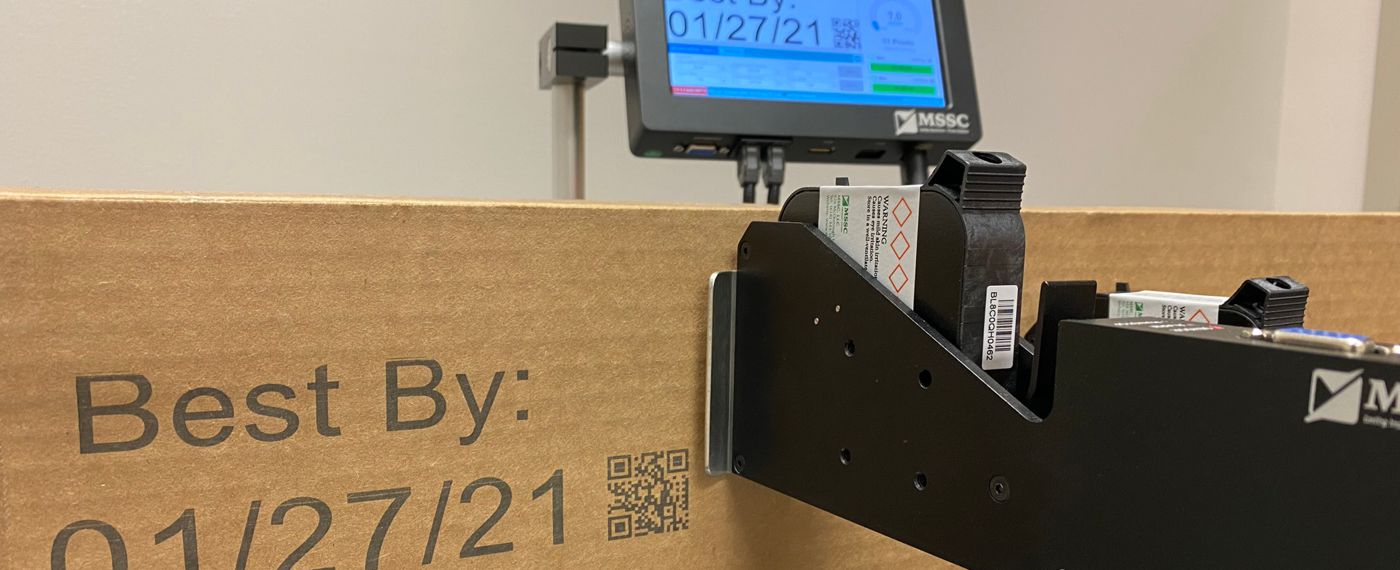

For the maximum print coverage, use the Smart-Jet® DUO MAX. When your printing requirements require the maximum coverage area, the Smart-Jet® DUO MAX has massive appeal. Paired with the DUO Controller, the MAX gives you the opportunity to code 1" tall messages on both sides of a product! It allows you to print everything from text, counter, box/lot and expiration date to Julian date, shift code and barcodes. And while you get the benefit of free-design within a 1" template area, there’s also the advantage of printing online data and integrating with other devices such as a PLC, camera and checkweigher. That’s a maximum amount of advantages you get with the SMART-JET® DUO MAX.
Download Pdf

Specifications:

  • Dimensions: (L x W x H):
    Controller 7.6" x 5.1" x 1.4" (193mm x 130.3mm x 34.5mm),
    Print head 8.5" x 2.5" x 1.9" (216.4mm x 64mm x 49.1mm)
  • Weight: Controller 2 lbs. (888 grams), Print head max 0.9 lbs. (412.5 grams)
  • Display: 7-inch touch screen on controller
  • Power Supply to Controller: AC 100-240 V, 50/60 Hz, DC 24V 2.5A, Maximum power consumption: 60W
  • Resolutions: Max 600 x 600 dpi
  • Print speed: Max 249 ft. (76m)/min @ 300 x 300 dpi
  • Density: Up to 3 levels of optical density
  • Throw Distance: Up to 0.2" (5mm)
  • Operating Temperature Range: 5°–50° C
