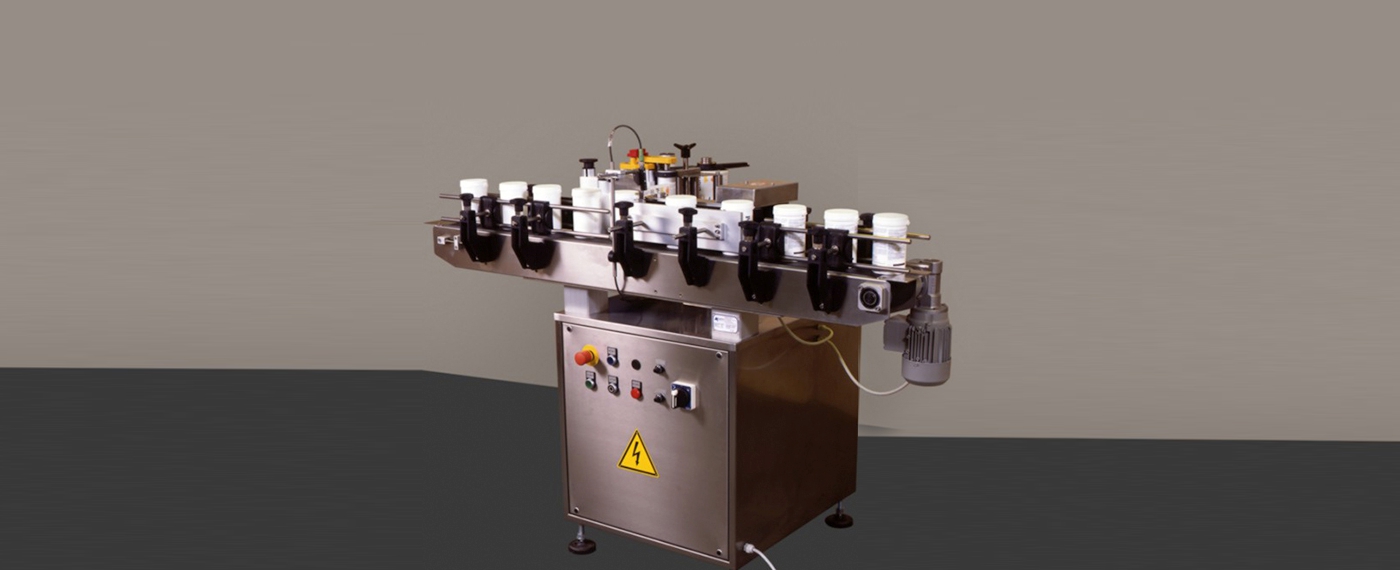

System 1 Surprise

System 1 Surprise is very economic system designed to apply selfadhesive labels on cylindrical containers.

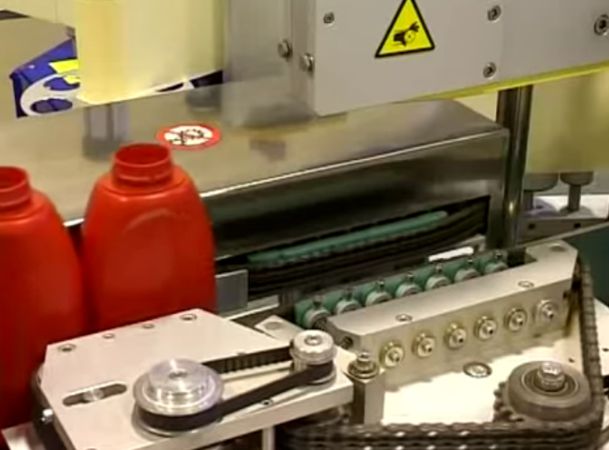

The wrap around device (DRP) guarantees perfect label application. The system is easily adjustable for different formats of labels and bottles.
Download Pdf

Technical Data

• Production Rate: max. 6000 pcs./hour
• Dispensing speed: max. 15 m/min(head Clear), max.30 m/min.(head Surprise)
• Product sizes: standard from diameter 20 mm to diameter 130 mm
• Label sizes: standard length min. 20 mm, max.300 mm height min. 10 mm, max. 248 mm
• Internal/External Reel Diameter: 40-75 mm/standard 280 mm
• Machine dimensions: A=1500 mm, B=1270 mm, C=1300 mm
• Machine Weight: 180 kg
• Connections: 230 V, 50-60 Hz, 700 W
• Compressed Air: 6 bar (only for Europrint)

Standard Configuration

• Machine frame with stainless steel panels
• Conveyor system, at variable speed
• Labeling head with microregulation and speed adjustment and tastex photocell start
• Product wrap around device H 90 mm
• Signal for line stop in case of alarm
• Electrical board
